adchpp::Client Class Reference

The client represents one connection to a user. More...

#include <Client.h>

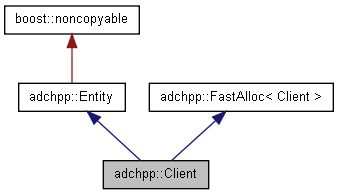

Inheritance diagram for adchpp::Client:

[legend]

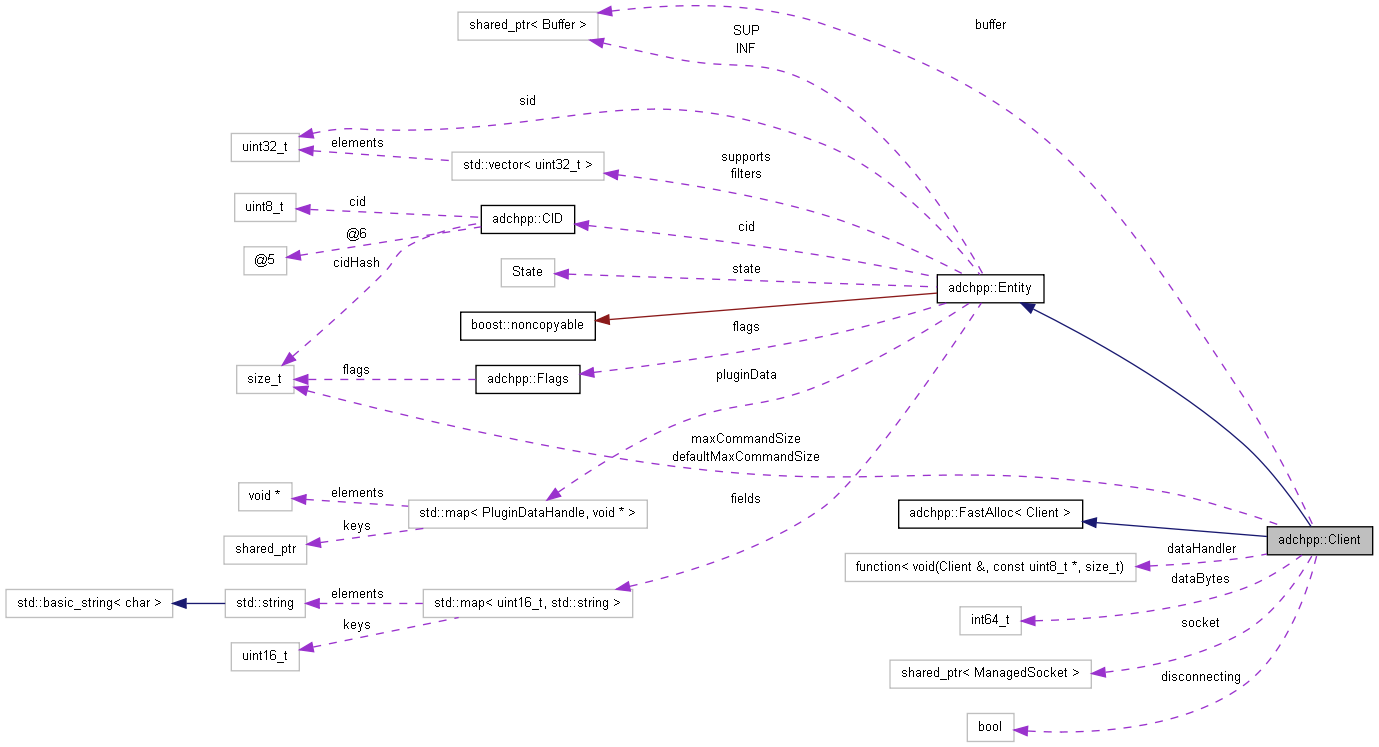

Collaboration diagram for adchpp::Client:

[legend]

List of all members.

Public Types
typedef std::function< void(Client &, const uint8_t *, size_t)	DataFunction )
	Set data mode for aBytes bytes.
enum	Flag { FLAG_BOT = 0x01, FLAG_REGISTERED = 0x02, FLAG_OP = 0x04, FLAG_SU = 0x08, FLAG_OWNER = 0x10, FLAG_HUB = 0x20, FLAG_HIDDEN = 0x40, MASK_CLIENT_TYPE = FLAG_BOT \| FLAG_REGISTERED \| FLAG_OP \| FLAG_SU \| FLAG_OWNER \| FLAG_HUB \| FLAG_HIDDEN, FLAG_PASSWORD = 0x100, FLAG_EXT_AWAY = 0x200, FLAG_OK_IP = 0x400, FLAG_GHOST = 0x800 }
enum	State { STATE_PROTOCOL, STATE_IDENTIFY, STATE_VERIFY, STATE_NORMAL, STATE_DATA }
Public Member Functions
ADCHPP_DLL bool	addSupports (uint32_t feature)
ADCHPP_DLL void	clearPluginData (const PluginDataHandle &handle) throw ()
	Clear any data referenced by the handle, calling the registered delete function.
virtual ADCHPP_DLL void	disconnect (Util::Reason reason) throw ()
ADCHPP_DLL bool	getAllFields (AdcCommand &cmd) const throw ()
	Add any flags that have been updated to the AdcCommand (type etc is not set).
const CID &	getCID () const
ADCHPP_DLL const std::string &	getField (const char *name) const
ADCHPP_DLL const BufferPtr &	getINF () const
const std::string &	getIp () const throw ()
size_t	getMaxCommandSize ()
virtual time_t	getOverflow () const
	The time that this entity's write buffer size exceeded the maximum buffer size, 0 if no overflow.
ADCHPP_DLL void *	getPluginData (const PluginDataHandle &handle) const throw ()
virtual size_t	getQueuedBytes () const
	The number of bytes in the write buffer.
uint32_t	getSID () const
State	getState () const
ADCHPP_DLL const BufferPtr &	getSUP () const
ADCHPP_DLL StringList	getSupportList () const
ADCHPP_DLL bool	hasField (const char *name) const
ADCHPP_DLL bool	hasSupport (uint32_t feature) const
virtual ADCHPP_DLL void	inject (AdcCommand &cmd)
bool	isAnySet (size_t aFlag) const
ADCHPP_DLL bool	isFiltered (const std::string &features) const
bool	isSet (size_t aFlag) const
ADCHPP_DLL bool	removeSupports (uint32_t feature)
void	send (const AdcCommand &cmd)
virtual void	send (const BufferPtr &command) throw ()
void	setCID (const CID &cid_)
void	setDataMode (const DataFunction &handler, int64_t aBytes)
ADCHPP_DLL void	setField (const char *name, const std::string &value)
ADCHPP_DLL void	setFlag (size_t aFlag)
void	setMaxCommandSize (size_t newSize)
ADCHPP_DLL void	setPluginData (const PluginDataHandle &handle, void *data) throw ()
	Set PSD (plugin specific data).
void	setState (State state_)
ADCHPP_DLL void	unsetFlag (size_t aFlag)
ADCHPP_DLL void	updateFields (const AdcCommand &cmd)
ADCHPP_DLL void	updateSupports (const AdcCommand &cmd) throw ()
Static Public Member Functions
static Client *	create (const ManagedSocketPtr &ms_, uint32_t sid_) throw ()
static size_t	getDefaultMaxCommandSize ()
static void	setDefaultMaxCommandSize (size_t newSize)
Protected Types
typedef std::map < PluginDataHandle, void * >	PluginDataMap
Protected Attributes
CID	cid
FieldMap	fields
	INF fields.
std::vector< uint32_t >	filters
	INF SU.
Flags	flags
BufferPtr	INF
	Latest INF cached.
PluginDataMap	pluginData
	Plugin data, see PluginManager::registerPluginData.
uint32_t	sid
State	state
BufferPtr	SUP
	Latest SUP cached.
std::vector< uint32_t >	supports
	SUP items.
Private Member Functions
	Client (uint32_t sid_) throw ()
void	onConnected () throw ()
void	onData (const BufferPtr &) throw ()
void	onFailed (const boost::system::error_code &ec) throw ()
void	setSocket (const ManagedSocketPtr &aSocket) throw ()
virtual	~Client ()
Private Attributes
BufferPtr	buffer
int64_t	dataBytes
DataFunction	dataHandler
bool	disconnecting
size_t	maxCommandSize
ManagedSocketPtr	socket
Static Private Attributes
static size_t	defaultMaxCommandSize = 16 * 1024

Detailed Description

The client represents one connection to a user.

Definition at line 35 of file Client.h.

Member Typedef Documentation

typedef std::function<void (Client&, const uint8_t*, size_t) adchpp::Client::DataFunction)

Set data mode for aBytes bytes.

May only be called from on(ClientListener::Command...).

Definition at line 51 of file Client.h.

typedef std::map<PluginDataHandle, void*> adchpp::Entity::PluginDataMap [protected, inherited]

Definition at line 141 of file Entity.h.

Member Enumeration Documentation

enum adchpp::Entity::Flag [inherited]

Enumerator:

FLAG_BOT
FLAG_REGISTERED
FLAG_OP
FLAG_SU
FLAG_OWNER
FLAG_HUB
FLAG_HIDDEN
MASK_CLIENT_TYPE
FLAG_PASSWORD
FLAG_EXT_AWAY	Extended away, no need to send msg.
FLAG_OK_IP	Plugins can use these flags to disable various checks. Bypass ip check
FLAG_GHOST	This entity is now a ghost being disconnected, totally ignored by ADCH++.

Definition at line 45 of file Entity.h.

enum adchpp::Entity::State [inherited]

Enumerator:

STATE_PROTOCOL	Initial protocol negotiation (wait for SUP).
STATE_IDENTIFY	Identify the connecting client (wait for INF).
STATE_VERIFY	Verify the client (wait for PAS).
STATE_NORMAL	Normal operation.
STATE_DATA	Binary data transfer.

Definition at line 32 of file Entity.h.

Constructor & Destructor Documentation

adchpp::Client::Client ( uint32_t sid_ ) throw () [private]

Definition at line 38 of file Client.cpp.

adchpp::Client::~Client ( ) [private, virtual]

Definition at line 42 of file Client.cpp.

Member Function Documentation

bool adchpp::Entity::addSupports ( uint32_t feature ) [inherited]

Definition at line 93 of file Entity.cpp.

References adchpp::Entity::SUP, and adchpp::Entity::supports.

Referenced by adchpp::ClientManager::ClientManager().

Here is the caller graph for this function:

void adchpp::Entity::clearPluginData ( const PluginDataHandle & handle ) throw () [inherited]

Clear any data referenced by the handle, calling the registered delete function.

Definition at line 186 of file Entity.cpp.

Client * adchpp::Client::create	(	const ManagedSocketPtr &	ms_,
		uint32_t	sid_
	)			throw () `[static]`

Definition at line 32 of file Client.cpp.

References c, ms, and setSocket().

Referenced by adchpp::ClientManager::handleIncoming().

Here is the call graph for this function:

Here is the caller graph for this function:

void adchpp::Client::disconnect ( Util::Reason reason ) throw () [virtual]

Parameters:

reason

The statistic to update

Todo:: fix timeout

Implements adchpp::Entity.

Definition at line 149 of file Client.cpp.

Referenced by adchpp::ClientManager::badState(), adchpp::ClientManager::onConnected(), adchpp::ClientManager::onReceive(), adchpp::ClientManager::verifyCID(), adchpp::ClientManager::verifyINF(), adchpp::ClientManager::verifyIp(), adchpp::ClientManager::verifyNick(), and adchpp::ClientManager::verifySUP().

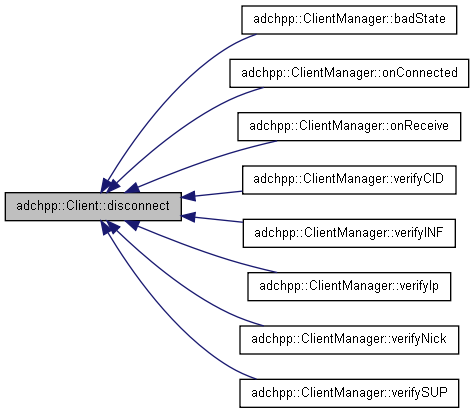

Here is the caller graph for this function:

bool adchpp::Entity::getAllFields ( AdcCommand & cmd ) const throw () [inherited]

Add any flags that have been updated to the AdcCommand (type etc is not set).

Definition at line 69 of file Entity.cpp.

References adchpp::AdcCommand::fromField().

Referenced by adchpp::Entity::getINF().

Here is the call graph for this function:

Here is the caller graph for this function:

const CID& adchpp::Entity::getCID ( ) const [inline, inherited]

Definition at line 119 of file Entity.h.

Referenced by adchpp::ClientManager::regBot(), adchpp::ClientManager::removeEntity(), and adchpp::ClientManager::verifyCID().

Here is the caller graph for this function:

static size_t adchpp::Client::getDefaultMaxCommandSize ( ) [inline, static]

Definition at line 55 of file Client.h.

const std::string & adchpp::Entity::getField ( const char * name ) const [inherited]

Definition at line 37 of file Entity.cpp.

References adchpp::Util::emptyString, adchpp::Entity::fields, and adchpp::AdcCommand::toField().

Referenced by adchpp::ClientManager::regBot(), adchpp::ClientManager::removeEntity(), and adchpp::ClientManager::verifyNick().

Here is the call graph for this function:

Here is the caller graph for this function:

const BufferPtr & adchpp::Entity::getINF ( ) const [inherited]

Definition at line 84 of file Entity.cpp.

References adchpp::Entity::getAllFields(), adchpp::AdcCommand::getBuffer(), adchpp::Entity::getSID(), adchpp::AdcCommand::HUB_SID, adchpp::Entity::INF, adchpp::AdcCommand::TYPE_BROADCAST, and adchpp::AdcCommand::TYPE_INFO.

Referenced by adchpp::ClientManager::enterNormal().

Here is the call graph for this function:

Here is the caller graph for this function:

const std::string& adchpp::Client::getIp ( ) const throw () [inline]

Definition at line 45 of file Client.h.

Referenced by adchpp::ClientManager::verifyIp().

Here is the caller graph for this function:

size_t adchpp::Client::getMaxCommandSize ( ) [inline]

Definition at line 58 of file Client.h.

virtual time_t adchpp::Client::getOverflow ( ) const [inline, virtual]

The time that this entity's write buffer size exceeded the maximum buffer size, 0 if no overflow.

Reimplemented from adchpp::Entity.

Definition at line 61 of file Client.h.

void * adchpp::Entity::getPluginData ( const PluginDataHandle & handle ) const throw () [inherited]

Parameters:

handle

Plugin data handle, as returned by PluginManager::registerPluginData

Returns:: Value stored, NULL if none found

Definition at line 181 of file Entity.cpp.

virtual size_t adchpp::Client::getQueuedBytes ( ) const [inline, virtual]

The number of bytes in the write buffer.

Reimplemented from adchpp::Entity.

Definition at line 60 of file Client.h.

uint32_t adchpp::Entity::getSID ( ) const [inline, inherited]

Definition at line 91 of file Entity.h.

Referenced by adchpp::ClientManager::enterIdentify(), adchpp::ClientManager::enterNormal(), adchpp::ClientManager::enterVerify(), adchpp::Entity::getINF(), adchpp::Entity::getSUP(), adchpp::ClientManager::onConnected(), adchpp::ClientManager::onFailed(), adchpp::ClientManager::removeEntity(), adchpp::ClientManager::verifyCID(), adchpp::ClientManager::verifyIp(), and adchpp::ClientManager::verifyNick().

Here is the caller graph for this function:

State adchpp::Entity::getState ( ) const [inline, inherited]

Definition at line 122 of file Entity.h.

Referenced by adchpp::ClientManager::enterIdentify(), adchpp::ClientManager::enterNormal(), adchpp::ClientManager::enterVerify(), adchpp::ClientManager::handle(), adchpp::ClientManager::handleDefault(), adchpp::ClientManager::onConnected(), adchpp::PluginManager::CommandDispatch::operator()(), adchpp::ClientManager::removeEntity(), adchpp::ClientManager::setState(), adchpp::ClientManager::verifyCID(), and adchpp::ClientManager::verifyIp().

Here is the caller graph for this function:

const BufferPtr & adchpp::Entity::getSUP ( ) const [inherited]

Definition at line 127 of file Entity.cpp.

References adchpp::AdcCommand::addParam(), adchpp::AdcCommand::fromFourCC(), adchpp::AdcCommand::getBuffer(), adchpp::Entity::getSID(), adchpp::AdcCommand::HUB_SID, adchpp::Entity::SUP, adchpp::Entity::supports, adchpp::AdcCommand::TYPE_BROADCAST, and adchpp::AdcCommand::TYPE_INFO.

Here is the call graph for this function:

StringList adchpp::Entity::getSupportList ( ) const [inherited]

Definition at line 105 of file Entity.cpp.

References adchpp::AdcCommand::fromFourCC(), and adchpp::Entity::supports.

Here is the call graph for this function:

bool adchpp::Entity::hasField ( const char * name ) const [inherited]

Definition at line 42 of file Entity.cpp.

References adchpp::Entity::fields, and adchpp::AdcCommand::toField().

Referenced by adchpp::ClientManager::verifyIp().

Here is the call graph for this function:

Here is the caller graph for this function:

bool adchpp::Entity::hasSupport ( uint32_t feature ) const [inherited]

Definition at line 138 of file Entity.cpp.

References adchpp::Entity::supports.

Referenced by adchpp::ClientManager::verifySUP().

Here is the caller graph for this function:

void adchpp::Entity::inject ( AdcCommand & cmd ) [virtual, inherited]

Definition at line 33 of file Entity.cpp.

References adchpp::Singleton< T >::getInstance().

Here is the call graph for this function:

bool adchpp::Entity::isAnySet ( size_t aFlag ) const [inline, inherited]

Definition at line 126 of file Entity.h.

bool adchpp::Entity::isFiltered ( const std::string & features ) const [inherited]

Definition at line 157 of file Entity.cpp.

References adchpp::Entity::filters, and adchpp::AdcCommand::toFourCC().

Here is the call graph for this function:

bool adchpp::Entity::isSet ( size_t aFlag ) const [inline, inherited]

Definition at line 125 of file Entity.h.

Referenced by adchpp::ClientManager::removeEntity(), and adchpp::ClientManager::verifyIp().

Here is the caller graph for this function:

void adchpp::Client::onConnected ( ) throw () [private]

Definition at line 78 of file Client.cpp.

void adchpp::Client::onData ( const BufferPtr & buf ) throw () [private]

Definition at line 82 of file Client.cpp.

void adchpp::Client::onFailed ( const boost::system::error_code & ec ) throw () [private]

Definition at line 167 of file Client.cpp.

bool adchpp::Entity::removeSupports ( uint32_t feature ) [inherited]

Definition at line 114 of file Entity.cpp.

References adchpp::Entity::SUP, and adchpp::Entity::supports.

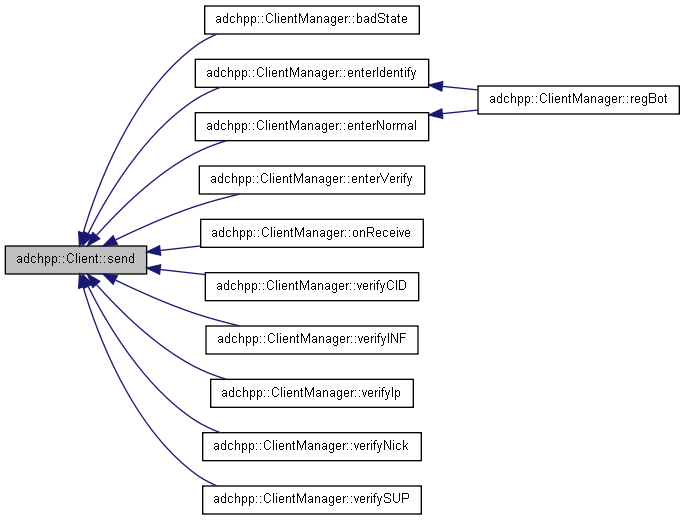

void adchpp::Entity::send ( const AdcCommand & cmd ) [inline, inherited]

Definition at line 71 of file Entity.h.

References adchpp::AdcCommand::getBuffer(), and adchpp::Entity::send().

Referenced by adchpp::ClientManager::maybeSend(), adchpp::Entity::send(), adchpp::ClientManager::verifyCID(), and adchpp::ClientManager::verifyOverflow().

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void adchpp::Client::send ( const BufferPtr & command ) throw () [inline, virtual]

Implements adchpp::Entity.

Definition at line 41 of file Client.h.

Referenced by adchpp::ClientManager::badState(), adchpp::ClientManager::enterIdentify(), adchpp::ClientManager::enterNormal(), adchpp::ClientManager::enterVerify(), adchpp::ClientManager::onReceive(), adchpp::ClientManager::verifyCID(), adchpp::ClientManager::verifyINF(), adchpp::ClientManager::verifyIp(), adchpp::ClientManager::verifyNick(), and adchpp::ClientManager::verifySUP().

Here is the caller graph for this function:

void adchpp::Entity::setCID ( const CID & cid_ ) [inline, inherited]

Definition at line 120 of file Entity.h.

Referenced by adchpp::Bot::Bot(), and adchpp::ClientManager::verifyCID().

Here is the caller graph for this function:

void adchpp::Client::setDataMode	(	const DataFunction &	handler,
		int64_t	aBytes
	)			`[inline]`

Definition at line 52 of file Client.h.

static void adchpp::Client::setDefaultMaxCommandSize ( size_t newSize ) [inline, static]

Definition at line 54 of file Client.h.

void adchpp::Entity::setField	(	const char *	name,
		const std::string &	value
	)			`[inherited]`

Definition at line 46 of file Entity.cpp.

References adchpp::Entity::fields, adchpp::Entity::filters, adchpp::Entity::INF, adchpp::AdcCommand::toField(), and adchpp::AdcCommand::toFourCC().

Referenced by adchpp::Hub::Hub(), adchpp::Entity::setFlag(), adchpp::Entity::unsetFlag(), adchpp::Entity::updateFields(), and adchpp::ClientManager::verifyIp().

Here is the call graph for this function:

Here is the caller graph for this function:

void adchpp::Entity::setFlag ( size_t aFlag ) [inherited]

Definition at line 196 of file Entity.cpp.

References adchpp::Entity::flags, adchpp::Flags::getFlags(), adchpp::Entity::MASK_CLIENT_TYPE, adchpp::Entity::setField(), adchpp::Flags::setFlag(), and adchpp::Util::toString().

Referenced by adchpp::Bot::Bot(), adchpp::Hub::Hub(), and adchpp::ClientManager::verifyCID().

Here is the call graph for this function:

Here is the caller graph for this function:

void adchpp::Client::setMaxCommandSize ( size_t newSize ) [inline]

Definition at line 57 of file Client.h.

void adchpp::Entity::setPluginData	(	const PluginDataHandle &	handle,
		void *	data
	)			throw () `[inherited]`

Set PSD (plugin specific data).

This allows a plugin to store arbitrary per-client data, and retrieve it later on. The life cycle of the data follows that of the client unless explicitly removed. Any data referenced by the plugin will have its delete function called when the Entity is deleted.

Parameters:
