adchpp::ManagedSocket Class Reference

An asynchronous socket managed by SocketManager. More...

#include <ManagedSocket.h>

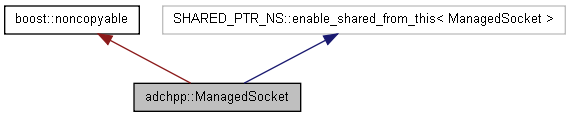

Inheritance diagram for adchpp::ManagedSocket:

[legend]

Collaboration diagram for adchpp::ManagedSocket:

[legend]

List of all members.

Public Types
typedef std::function< void()>	ConnectedHandler
typedef std::function< void(const BufferPtr &)>	DataHandler
typedef std::function< void(const boost::system::error_code &)>	FailedHandler
Public Member Functions
ADCHPP_DLL void	disconnect (size_t timeout, Util::Reason reason) throw ()
	Asynchronous disconnect.
const std::string &	getIp () const
time_t	getLastWrite ()
size_t	getMaxBufferSize ()
time_t	getOverflow ()
ADCHPP_DLL size_t	getQueuedBytes () const
	Returns the number of bytes in the output buffer; buffers must be locked.
	ManagedSocket (const AsyncStreamPtr &sock_)
void	setConnectedHandler (const ConnectedHandler &handler)
void	setDataHandler (const DataHandler &handler)
void	setFailedHandler (const FailedHandler &handler)
void	setIp (const std::string &ip_)
void	setMaxBufferSize (size_t newSize)
ADCHPP_DLL void	write (const BufferPtr &buf, bool lowPrio=false) throw ()
	Asynchronous write.
	~ManagedSocket () throw ()
Static Public Member Functions
static size_t	getDefaultMaxBufferSize ()
static time_t	getOverflowTimeout ()
static void	setDefaultMaxBufferSize (size_t newSize)
Private Member Functions
void	completeAccept (const boost::system::error_code &) throw ()
void	completeRead (const boost::system::error_code &ec, size_t bytes) throw ()
void	completeWrite (const boost::system::error_code &ec, size_t bytes) throw ()
void	failSocket (const boost::system::error_code &error) throw ()
void	prepareRead () throw ()
void	prepareRead2 (const boost::system::error_code &ec, size_t bytes) throw ()
void	prepareWrite () throw ()
Private Attributes
ConnectedHandler	connectedHandler
DataHandler	dataHandler
uint32_t	disc
	Disconnection scheduled for this socket.
FailedHandler	failedHandler
BufferPtr	inBuf
	Input buffer used when receiving data.
std::string	ip
time_t	lastWrite
	Last time that a write started, 0 if no active write.
size_t	maxBufferSize
	Max allowed write buffer size for this socket.
BufferList	outBuf
	Output buffer, for storing data that's waiting to be transmitted.
time_t	overflow
	Overflow timer, the time when the socket started to overflow.
AsyncStreamPtr	sock
Static Private Attributes
static size_t	defaultMaxBufferSize = 16 * 1024
static time_t	overflowTimeout = 60
Friends
class	SocketFactory
class	SocketManager

Detailed Description

An asynchronous socket managed by SocketManager.

Definition at line 35 of file ManagedSocket.h.

Member Typedef Documentation

typedef std::function<void()> adchpp::ManagedSocket::ConnectedHandler

Definition at line 51 of file ManagedSocket.h.

typedef std::function<void(const BufferPtr&)> adchpp::ManagedSocket::DataHandler

Definition at line 53 of file ManagedSocket.h.

typedef std::function<void(const boost::system::error_code&)> adchpp::ManagedSocket::FailedHandler

Definition at line 55 of file ManagedSocket.h.

Constructor & Destructor Documentation

adchpp::ManagedSocket::ManagedSocket ( const AsyncStreamPtr & sock_ ) [inline]

Definition at line 37 of file ManagedSocket.h.

adchpp::ManagedSocket::~ManagedSocket ( ) throw ()

Definition at line 35 of file ManagedSocket.cpp.

References dcdebug.

Member Function Documentation

void adchpp::ManagedSocket::completeAccept ( const boost::system::error_code & ec ) throw () [private]

Definition at line 180 of file ManagedSocket.cpp.

void adchpp::ManagedSocket::completeRead	(	const boost::system::error_code &	ec,
		size_t	bytes
	)			throw () `[private]`

Definition at line 158 of file ManagedSocket.cpp.

References adchpp::Stats::recvBytes, and adchpp::Stats::recvCalls.

void adchpp::ManagedSocket::completeWrite	(	const boost::system::error_code &	ec,
		size_t	bytes
	)			throw () `[private]`

Definition at line 98 of file ManagedSocket.cpp.

References adchpp::Stats::sendBytes, and adchpp::Stats::sendCalls.

void adchpp::ManagedSocket::disconnect	(	size_t	timeout,
		Util::Reason	reason
	)			throw ()

Asynchronous disconnect.

Pending data will be written, but no more data will be read.

Definition at line 206 of file ManagedSocket.cpp.

References adchpp::SocketManager::addJob(), GET_TICK, adchpp::Singleton< SocketManager >::getInstance(), and adchpp::Util::reasons.

Referenced by prepareWrite().

Here is the call graph for this function:

Here is the caller graph for this function:

void adchpp::ManagedSocket::failSocket ( const boost::system::error_code & error ) throw () [private]

Definition at line 190 of file ManagedSocket.cpp.

References adchpp::SocketManager::errors, and adchpp::Singleton< SocketManager >::getInstance().

Referenced by prepareRead2().

Here is the call graph for this function:

Here is the caller graph for this function:

static size_t adchpp::ManagedSocket::getDefaultMaxBufferSize ( ) [inline, static]

Definition at line 66 of file ManagedSocket.h.

References defaultMaxBufferSize.

const std::string& adchpp::ManagedSocket::getIp ( ) const [inline]

Definition at line 48 of file ManagedSocket.h.

References ip.

time_t adchpp::ManagedSocket::getLastWrite ( ) [inline]

Definition at line 63 of file ManagedSocket.h.

References lastWrite.

size_t adchpp::ManagedSocket::getMaxBufferSize ( ) [inline]

Definition at line 59 of file ManagedSocket.h.

References maxBufferSize.

time_t adchpp::ManagedSocket::getOverflow ( ) [inline]

Definition at line 61 of file ManagedSocket.h.

References overflow.

static time_t adchpp::ManagedSocket::getOverflowTimeout ( ) [inline, static]

Definition at line 68 of file ManagedSocket.h.

References overflowTimeout.

size_t adchpp::ManagedSocket::getQueuedBytes ( ) const

Returns the number of bytes in the output buffer; buffers must be locked.

Definition at line 47 of file ManagedSocket.cpp.

References outBuf, and adchpp::sum().

Here is the call graph for this function:

void adchpp::ManagedSocket::prepareRead ( ) throw () [private]

Definition at line 133 of file ManagedSocket.cpp.

References sock.

void adchpp::ManagedSocket::prepareRead2	(	const boost::system::error_code &	ec,
		size_t	bytes
	)			throw () `[private]`

Definition at line 138 of file ManagedSocket.cpp.

References failSocket(), inBuf, and sock.

Here is the call graph for this function:

void adchpp::ManagedSocket::prepareWrite ( ) throw () [private]

Definition at line 89 of file ManagedSocket.cpp.

References disconnect(), adchpp::TimerManager::getTime(), lastWrite, outBuf, adchpp::Util::REASON_WRITE_TIMEOUT, and sock.

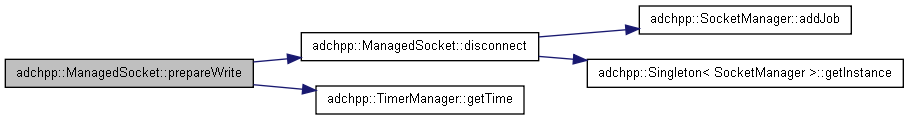

Here is the call graph for this function:

void adchpp::ManagedSocket::setConnectedHandler ( const ConnectedHandler & handler ) [inline]

Definition at line 52 of file ManagedSocket.h.

References connectedHandler.

void adchpp::ManagedSocket::setDataHandler ( const DataHandler & handler ) [inline]

Definition at line 54 of file ManagedSocket.h.

References dataHandler.

static void adchpp::ManagedSocket::setDefaultMaxBufferSize ( size_t newSize ) [inline, static]

Definition at line 65 of file ManagedSocket.h.

References defaultMaxBufferSize.

void adchpp::ManagedSocket::setFailedHandler ( const FailedHandler & handler ) [inline]

Definition at line 56 of file ManagedSocket.h.

References failedHandler.

void adchpp::ManagedSocket::setIp ( const std::string & ip_ ) [inline]

Definition at line 49 of file ManagedSocket.h.

References ip.

void adchpp::ManagedSocket::setMaxBufferSize ( size_t newSize ) [inline]

Definition at line 58 of file ManagedSocket.h.

References maxBufferSize.

void adchpp::ManagedSocket::write	(	const BufferPtr &	buf,
		bool	lowPrio = `false`
	)			throw ()

Asynchronous write.

Definition at line 51 of file ManagedSocket.cpp.

References GET_TIME, adchpp::Stats::queueBytes, adchpp::Stats::queueCalls, and adchpp::Util::REASON_WRITE_OVERFLOW.

Friends And Related Function Documentation

friend class SocketFactory [friend]

Definition at line 76 of file ManagedSocket.h.

friend class SocketManager [friend]

Definition at line 75 of file ManagedSocket.h.

Member Data Documentation

ConnectedHandler adchpp::ManagedSocket::connectedHandler [private]

Definition at line 108 of file ManagedSocket.h.

Referenced by setConnectedHandler().

DataHandler adchpp::ManagedSocket::dataHandler [private]

Definition at line 109 of file ManagedSocket.h.

Referenced by setDataHandler().

size_t adchpp::ManagedSocket::defaultMaxBufferSize = 16 * 1024 [static, private]

Definition at line 72 of file ManagedSocket.h.

Referenced by getDefaultMaxBufferSize(), and setDefaultMaxBufferSize().

uint32_t adchpp::ManagedSocket::disc [private]

Disconnection scheduled for this socket.

Definition at line 98 of file ManagedSocket.h.

FailedHandler adchpp::ManagedSocket::failedHandler [private]

Definition at line 110 of file ManagedSocket.h.

Referenced by setFailedHandler().

BufferPtr adchpp::ManagedSocket::inBuf [private]

Input buffer used when receiving data.

Definition at line 93 of file ManagedSocket.h.

Referenced by prepareRead2().

std::string adchpp::ManagedSocket::ip [private]

Definition at line 106 of file ManagedSocket.h.

Referenced by getIp(), and setIp().

time_t adchpp::ManagedSocket::lastWrite [private]

Last time that a write started, 0 if no active write.

Definition at line 104 of file ManagedSocket.h.

Referenced by getLastWrite(), and prepareWrite().

size_t adchpp::ManagedSocket::maxBufferSize [private]

Max allowed write buffer size for this socket.

Definition at line 101 of file ManagedSocket.h.

Referenced by getMaxBufferSize(), and setMaxBufferSize().

BufferList adchpp::ManagedSocket::outBuf [private]

Output buffer, for storing data that's waiting to be transmitted.

Definition at line 90 of file ManagedSocket.h.

Referenced by getQueuedBytes(), and prepareWrite().

time_t adchpp::ManagedSocket::overflow [private]

Overflow timer, the time when the socket started to overflow.

Definition at line 96 of file ManagedSocket.h.

Referenced by getOverflow().

time_t adchpp::ManagedSocket::overflowTimeout = 60 [static, private]

Definition at line 73 of file ManagedSocket.h.

Referenced by getOverflowTimeout().

AsyncStreamPtr adchpp::ManagedSocket::sock [private]

Definition at line 87 of file ManagedSocket.h.

Referenced by prepareRead(), prepareRead2(), and prepareWrite().
